Click here to view an example output page for an alignment of Vpu proteins.

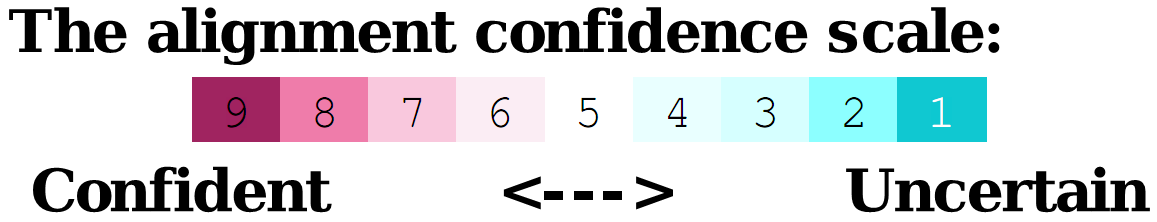

Color coding scheme of GUIDANCE
Vpu is an accessory viral protein present in human immunodeficiency virus 1
(HIV-1) and simian immunodeficiency viruses (SIVs) infecting chimpanzees and other primate species, yet
absent in HIV-2. The protein contains ~80 amino-acids and has two known major functions, which are
conducted by two distinct domains of the protein: promotion of CD4 degradation via the cytoplasmic
domain, and enhancement of virion release from host cells via the trans-membrane domain [1]. The latter activity has shown to be related to antagonism of Tetherin,
an innate immune protein that blocks the release of nascent virus from infected cells in the absence of
Vpu[2].
In order to exemplify the power and ease of GUIDANCE, the web-server was run on a sample of Vpu
protein sequences from the three main HIV-1 groups (M, N and O) and SIV sequences from chimpanzee (Pan
troglodytes), gorilla (Gorilla gorilla), and several Cercopithecus species, using the MAFFT method. The
results clearly show that the alignment of the cytoplasmic domain of Vpu is not robust to perturbations
in the guide tree. The same applies to some residues in the transmembrane and extracellular domains

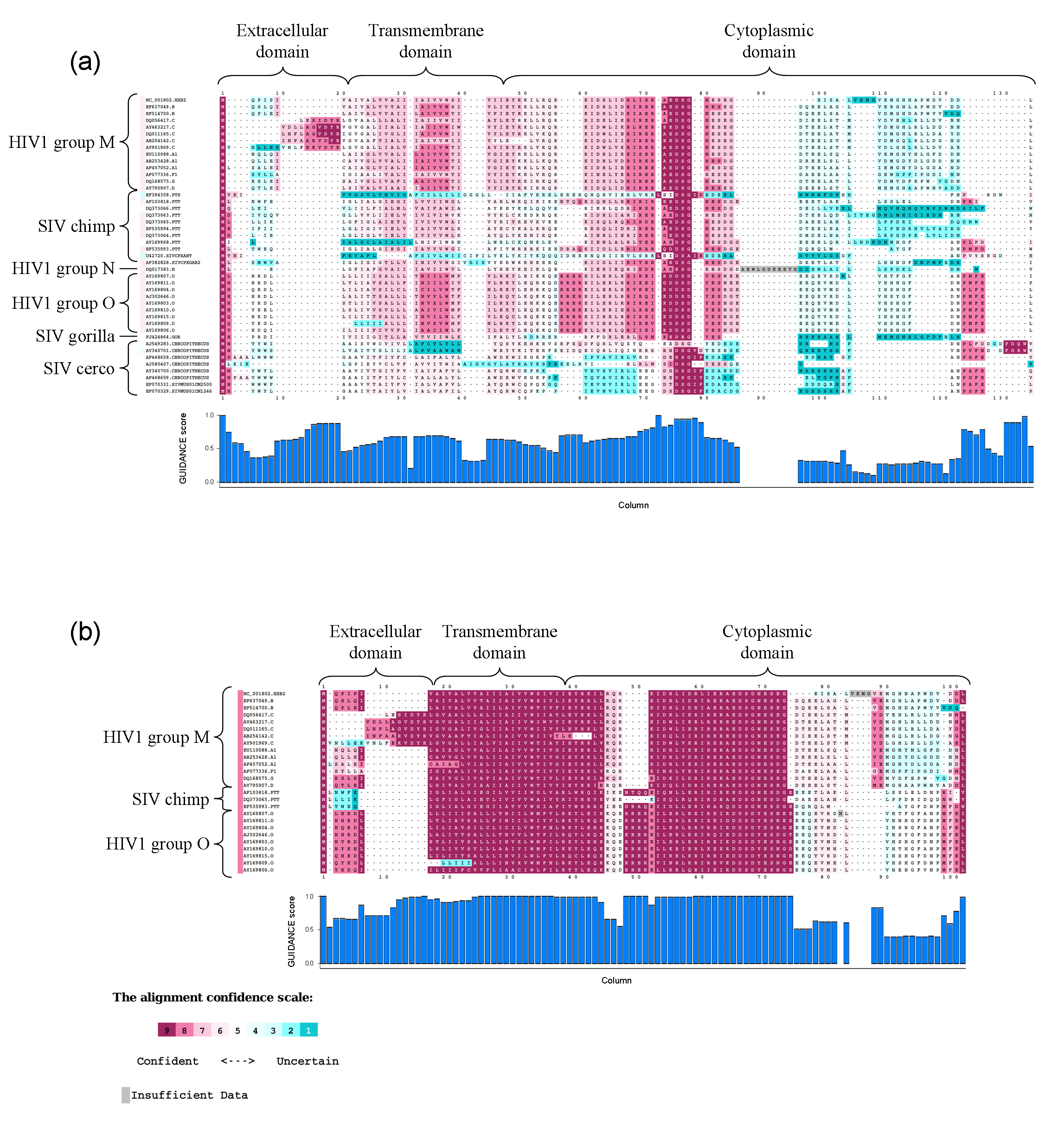

(Figure 1a). Looking at specific sequences, the SIV sequences from Cercopithecus and some of the
sequences from P. troglodytes are shown to be badly aligned with the rest of the sequence set.
Note that if those sequences are removed, the trans-membrane domain will become a confidently
aligned block (Figure 1b). Subsequent analyses based on this MSA should take the alignment uncertainty
into account. For example, if our goal is positive selection inference (see the Selecton server) then predictions regarding unreliable
regions such as the first or the last dozen of columns should be taken with a grain of salt.
GUIDANCE Application Example
References
1. Nomaguchi, M., M. Fujita, and A. Adachi, Role of HIV-1 Vpu
protein for virus spread and pathogenesis. Microbes Infect, 2008. 10(9): p. 960-7.
2. Neil, S.J., T. Zang, and P.D. Bieniasz, Tetherin inhibits
retrovirus release and is antagonized by HIV-1 Vpu. Nature, 2008. 451(7177): p. 425-30.
